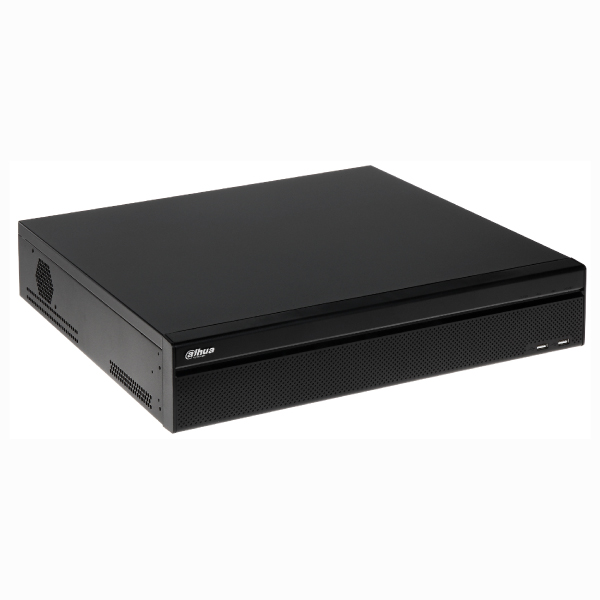

Dahua NVR5864-4KS2 64 Channel NVR (Network Video Recorder)
Original price was: 80,000.00৳ .75,000.00৳ Current price is: 75,000.00৳ .
Key Summary
- Model: Dahua NVR 5864-4KS2
- Main Processor: Quad-core
- Operating System: LINUX
- Motion detection, Backup selection
- Manual record mode
- Max 320Mbps Incoming Bandwidth
- 2 x HDMI / 2 x VGA simultaneous video output
- Smart H.265+ / H.265 / Smart H.264+ / H.264/MJPEG
- 1 Year Warranty
Description
Dahua NVR5864-4KS2 64 Channel NVR
- Main Processor Quad-core embedded processor
- Operating System Embedded LINUX
- Interface 2 HDMI (1 HDMI up to 3840×2160, Different Source ), 1 VGA
- Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
- Multi-screen Display 1st screen:
- 16CH: 1/4/8/9/16
- 32CH: 1/4/8/9/16/25/36
- 64CH: 1/4/8/9/16/25/36
- 2nd screen: 1/4/8/9/16
- OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
- Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
- Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
- Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface
- Tracking Trigger Event N/A
- Playback and Backup
- Sync Playback 1/4/9/16
- Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
- Internal HDD 8 SATA III Ports, up to 8TB capacity for each HDD
- HDD Mode Single, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended)
- eSATA 1 eSATA port
- SAS N/A
- Auxiliary Interface
- Front Cover N/A
- USB 4 ports (2 Rear USB3.0,2 Front USB2.0)
- RS232 1 Port, for PC Communication and Keyboard
- RS485 1 Port, for PTZ Control
- Third-party Support
- Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more
- Audio and Video
- IP Camera Input 16/32/64 Channel
- Two-way Talk 1 Channel Input, 1 Channel Output, RCA
- Compression H.265/H.264/MJPEG/MPEG4
- Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
- Record Rate 320Mbps
- Bit Rate 16kbps~20Mbps for per channel
- Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
- Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
- Interface 2 RJ-45 ports (10/100/1000Mbps)
- Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
- PoE N/A
- Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
- Optical Fiber Interface N/A
- Max. User Access 128 users
- Smart Phone iPhone, iPad, Android
- Interoperability ONVIF 2.4, CGI Conformant
- Power Supply Single, AC 100~240V, 50/60 Hz
- Power Consumption <16.7W (without HDD)
- Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
- Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90%
- Dimensions(W×D×H) 2U, 440mm×450.1mm×95mm (17.3″ x 17.7″ x 3.7″)
- Net Weight 6.55kg (14.4 lb) (without HDD)
- Gross Weight 9.5kg(20.94 lb)(without HDD)
- 1 Year Warranty
| Brand | Dahua |
|---|
